3D Worlds
Step Inside Real Industrial Systems
PLCLogix 3D Worlds bring your ladder logic to life by placing it inside fully interactive, real-world environments.
Instead of just writing code, you control complete systems and immediately see how your program behaves in action.
Real-World Applications
Work with realistic simulations of common industrial processes, including:
- Conveyor systems
- Traffic control
- Bottling lines

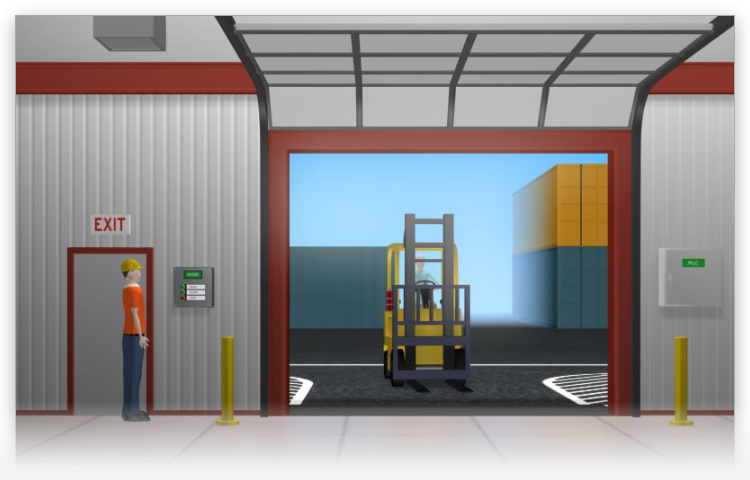

- Elevators and material handling
- Batch processing and silos
- Power generation
- Car washes and compressors
Each environment is designed to reflect how PLCs are actually used in industry.

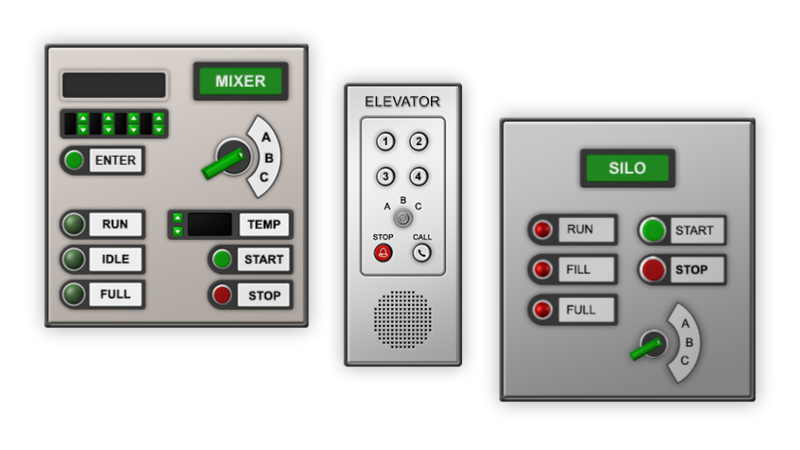

Interactive Control
Every 3D World includes a fully functional control panel:
- Pushbuttons, switches, and selectors
- Dials, levers, and thumbwheel inputs
- Real-time system feedback
Change inputs, run your program, and instantly see the results.

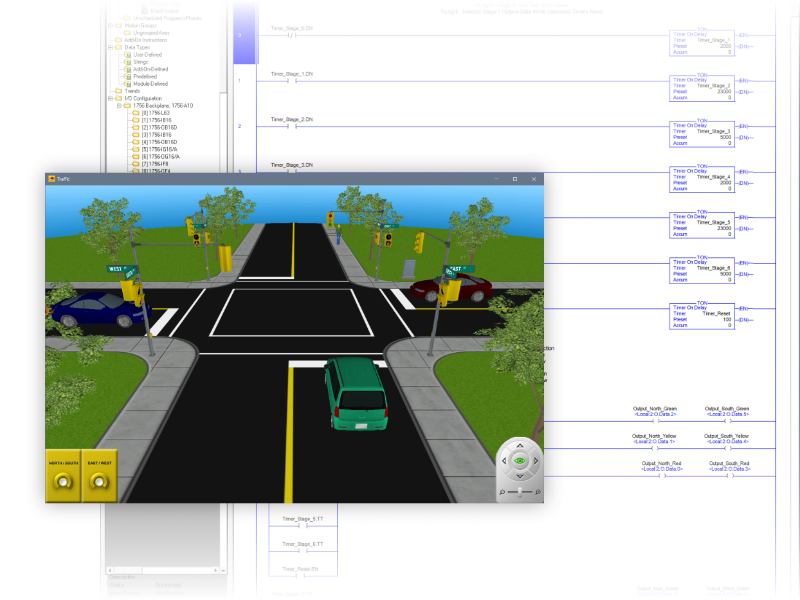

See Your Logic in Action
PLCLogix connects your ladder logic directly to the simulation, allowing you to:
- Test programs in real time
- Observe cause-and-effect behavior
- Troubleshoot and refine logic safely
- Run “what-if” scenarios without risk
This creates a powerful link between programming and real-world operation.

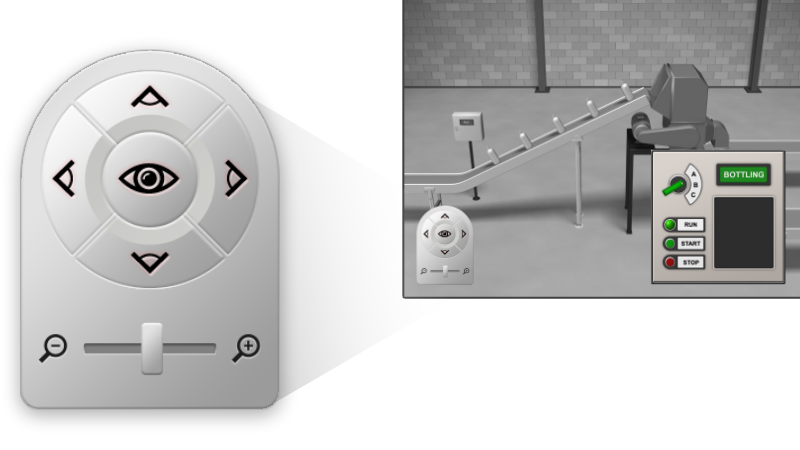

Explore from Every Angle
Navigate each environment with multiple camera views and zoom controls to better understand system behavior.
Move around the simulation, focus on key components, and see how every part of the process responds to your logic.
Built for Safe, Unlimited Practice
Train on systems that would normally cost thousands or even millions of dollars—without any risk.
Experiment freely, make mistakes, and improve your skills in a fully controlled environment.
